Which expansion joint system fits?
Four questions: where the joint is, the gap, what crosses it and the seismic zone. The answer is one or two of our India-made systems, read from their data sheets, with a link to get the joint schedule drawn up. It is a starting point, not a specification: the joint schedule confirms the system for each location.
Specifications that call for a “self-aligning” floor joint mean the MegAtec 340. Values come from the Vexcolt technical data sheets; confirm against the current TDS for your model.
India-made systems by location
Every system below is made in our Delhi factory. Gap ranges are from the data sheets.
Floor to floor
Across a floor, both sides at slab level

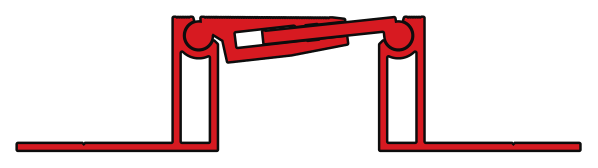

- MegAtec 300 25–250 mm
- MegAtec 310 50–250 mm

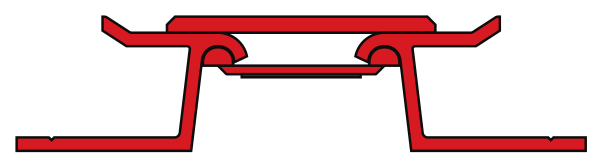

- MegAtec 340 25–300 mm

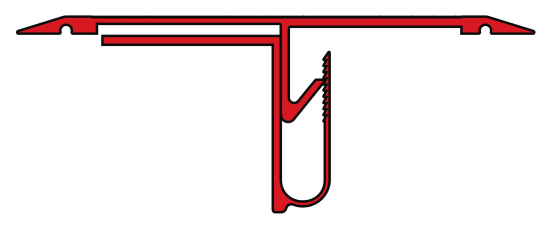

- MegAtec 370 25–150 mm

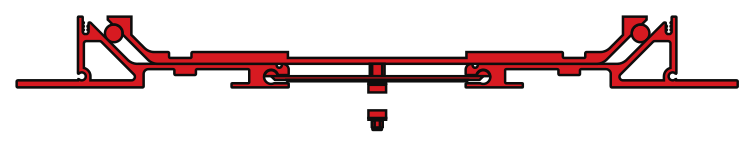

- SeismAtec 450 50–500 mm
- FlexAtec 1200 25–75 mm · made here at 25 and 50 mm
To order: MegAtec 320 · 330 · 350 · 380 · MaxAtec seal joints · FlexAtec 1000 · MicrAtec, for tile and stone
Floor to wall
Where a floor meets a wall or upstand
- MegAtec 300 25–250 mm
- MegAtec 310 50–250 mm
- MegAtec 340 25–300 mm
- MegAtec 370 25–150 mm
- SeismAtec 450 50–500 mm
- FlexAtec 1200 25–75 mm · made here at 25 and 50 mm
To order: MegAtec 320 · 350 · 380 · MaxAtec seal joints
Wall
Wall to wall, inside or out
- MegAtec 360 25–200 mm
- FlexAtec 1200 25–75 mm · made here at 25 and 50 mm
To order: MaxAtec wall joints · FlexAtec 1000
Rather send the drawings?
We return a joint schedule with the gap, the system and the movement class named for each location.
