Products
Movement-joint systems, by series
The full Vexcolt range — each system carries a technical data sheet with movement class, load rating and installation detail. Not sure which applies? Send us your drawings.
AllMegAtecFlexAtecSeismAtec
MegAtec
Metal floor & wall joints
Precision aluminium systems for foot, wheeled and vehicular traffic. ASTM E-1399 rated.
View MegAtec →
FlexAtec
Sealed & flexible joints
Watertight, high-movement sealed systems for demanding applications.
View FlexAtec →
SeismAtec
Seismic joints
High-movement systems for high-rise and critical structures in seismic zones.
View SeismAtec →
Our products
Correct system names and renders — each links to its technical data sheet.
MegAtec
MegAtec 300-A01/A02
Metal floor joint · foot & light-wheeled traffic.
View product →
MegAtec

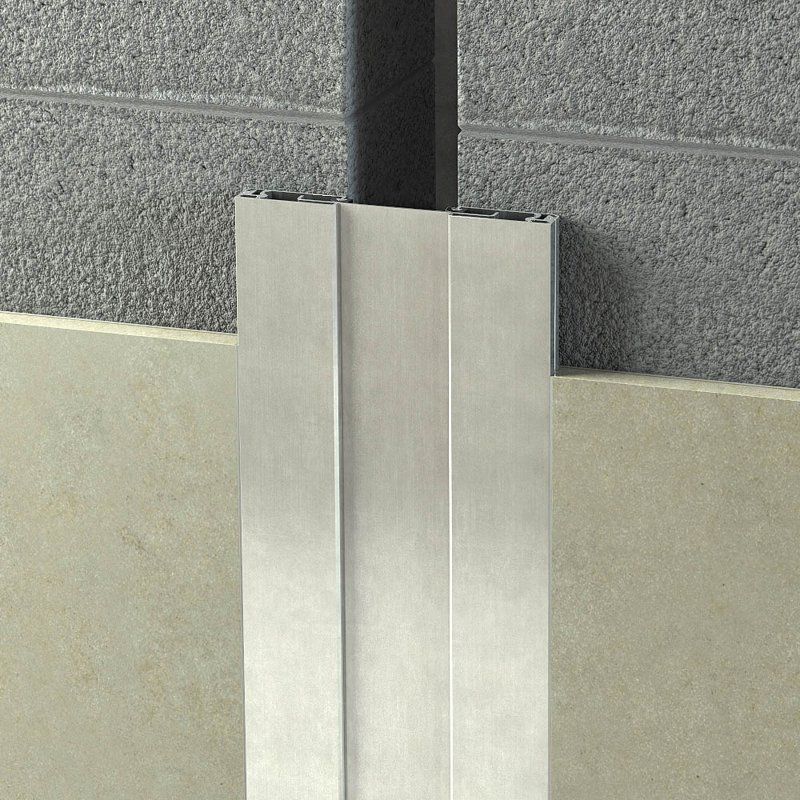

MegAtec 360-A07/A09
Metal floor joint · heavy traffic.
View product →
MegAtec

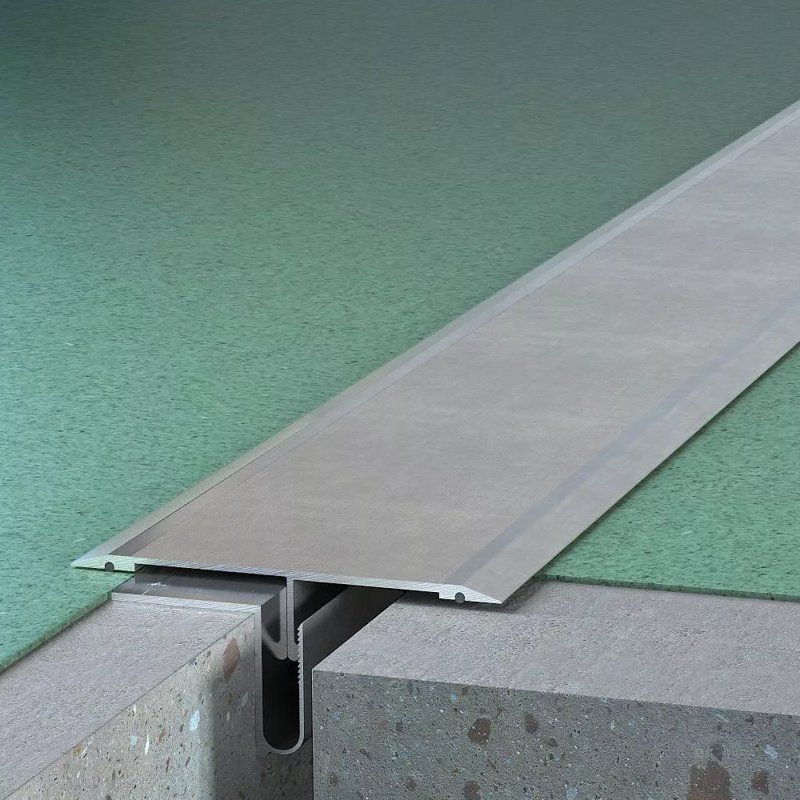

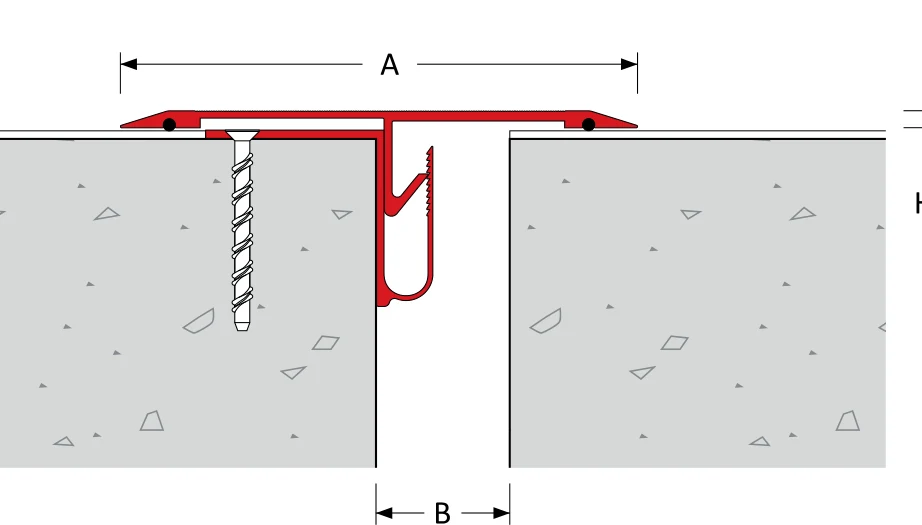

MegAtec 370-A01/A02
Metal floor joint · vehicular traffic.
View product →
FlexAtec

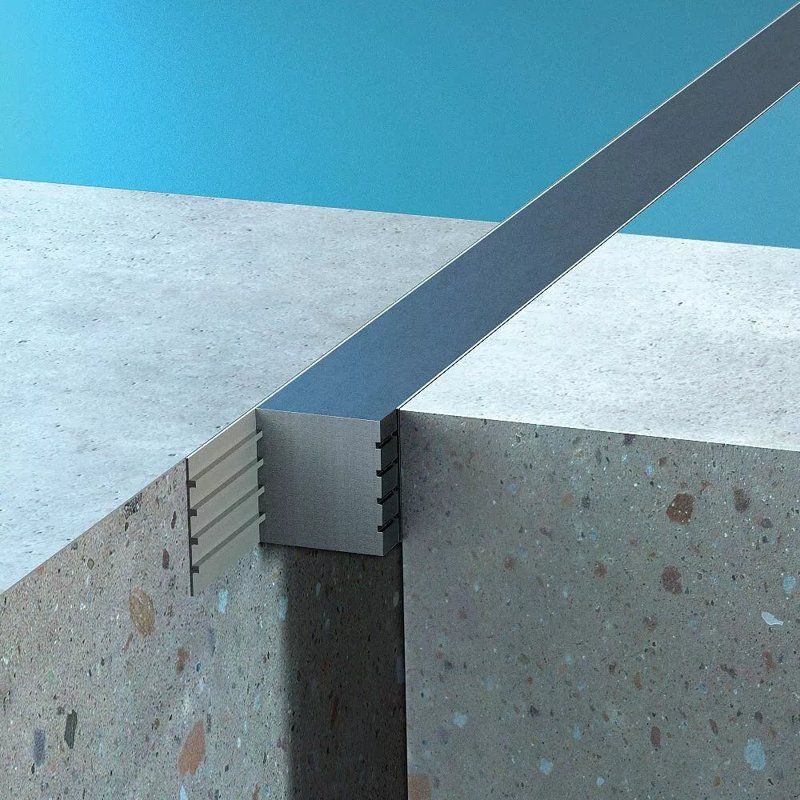

FlexAtec 1000-A01/A02
Sealed floor joint · watertight.
View product →
FlexAtec

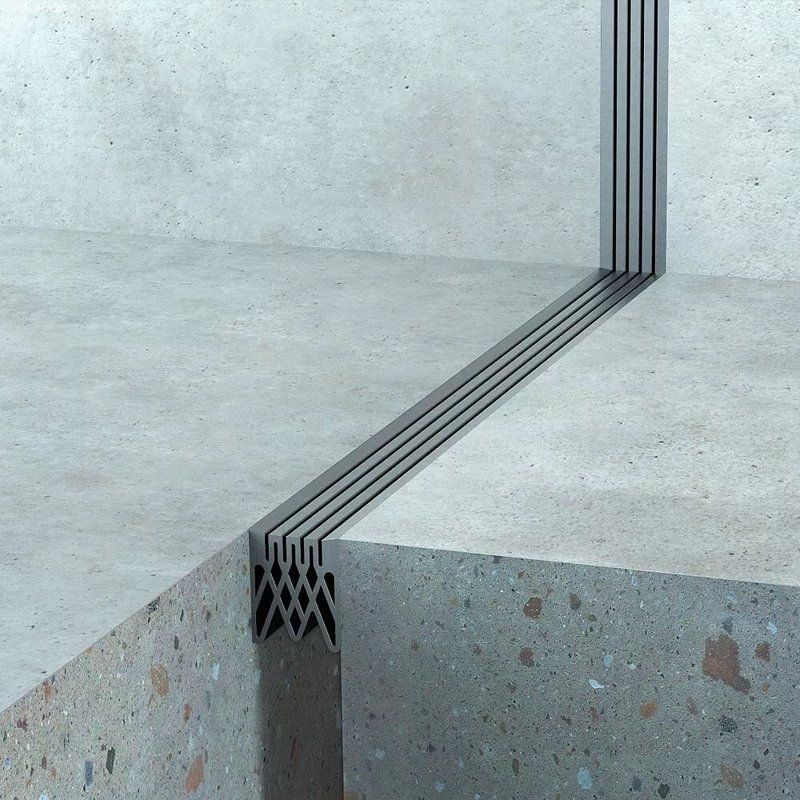

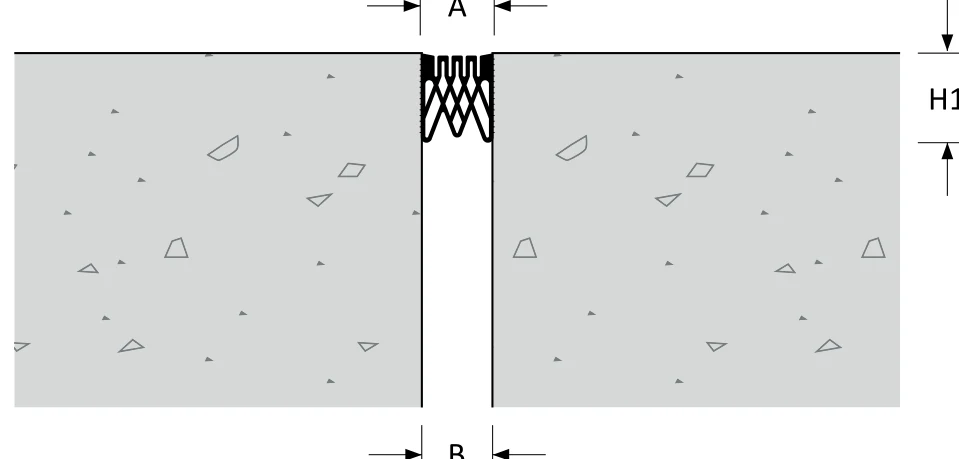

FlexAtec 1200-A01/A02
Sealed floor joint · high movement.
View product →
SeismAtec

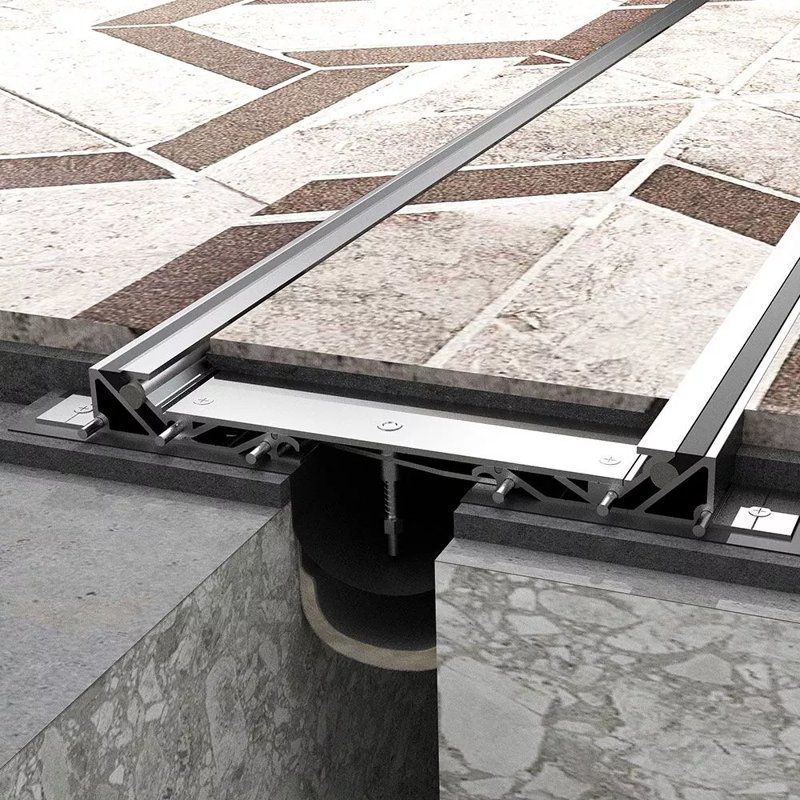

SeismAtec 450-A01/A02
Seismic floor joint · high-rise & critical structures.
View product →
Trusted by leading builders & contractors across India
From Gujarat & Rajasthan to Assam & the North-East — Punjab & Delhi to Kerala, Karnataka & Tamil Nadu
Also installed globally — Heathrow · Changi · Wembley · Tottenham Hotspur · Mall of the Emirates
MegAtec range at a glance
Summarised from Vexcolt technical data sheets — always confirm against the current TDS for your model.
| Model | Location | Traffic duty | Gap widths | Movement | Standard | TDS |
|---|---|---|---|---|---|---|
| MegAtec 300 | Floor to floor · floor to wall | Heaviest floor duty — pedestrian >25,000/day, trolley & wheeled ≤1,000/day, vehicular ≤10/day | 25–125 mm | ±5 to ±30 mm | ASTM E-1399 | View TDS ↗ |

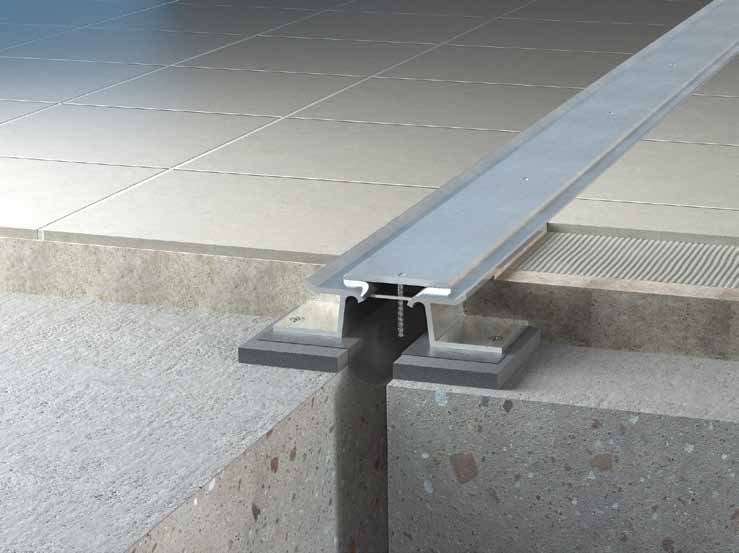

| MegAtec 340 | Floor to floor · floor to wall | Medium — pedestrian >25,000/day, trolley ≤1,000/day, wheeled ≤100/day | 25–300 mm | ±12 to ±150 mm | ASTM E-1399 | View TDS ↗ |
| MegAtec 360 | Wall to wall · corner & ceiling to wall | Not a floor system | 25–200 mm | ±12 to ±100 mm (A07) · ±6 to ±50 mm (A09) | ASTM E-1399 | View TDS ↗ |
| MegAtec 370 | Floor to floor · floor to wall | Light — pedestrian ≤10,000/day, trolley & light-wheeled ≤10/day | 25–150 mm | ±12 to ±75 mm | ASTM E-1399 | View TDS ↗ |
| MegAtec 610 | Roof to roof · roof to wall (terraces) | External — centre-plate system | 25–300 mm | ±12 to ±150 mm | ASTM E-1399 | View TDS ↗ |
Need help selecting the right system?
Send your drawings and movement requirements — we'll recommend and quote.
Technical library
Download technical data sheets
Every Vexcolt system ships with a TDS covering gap range, movement capacity, dimensions and installation detail. Download by family below, or send us your drawings and we'll shortlist for you.
MicrAtec (8 data sheets)
IntrAtec (2 data sheets)
MaxAtec (16 data sheets)
Maxatec-100 A01-A02 · Maxatec-100 A07-A09 · Maxatec-100 S01-S02 · Maxatec-100 V01-V02 · Maxatec-120 A01-A02 · Maxatec-120 A07-A09 · Maxatec-120 V01-V02 · Maxatec-130 A01-A02 · Maxatec-130 A07-A09 · Maxatec-140 A01-A02 · Maxatec-140 A07-A09 · Maxatec-150 A01-A02 · Maxatec-150 A07-A09 · Maxatec-160 A07 · Maxatec-200 A01-A02 · Maxatec-220 A01-A02
MegAtec (14 data sheets) series page →
MegAtec-300 A01-A02 · MegAtec-320 A01-A02 · MegAtec-330 S01-S02 · MegAtec-340 A01-A02 · MegAtec-340 S01-S02 · MegAtec-340 SS01-SS02 · MegAtec-350 A01-A02 · MegAtec-360 A01-A02 · MegAtec-360 A07-A09 · MegAtec-370 A01-A02 · MegAtec-370 A07-A09 · MegAtec-380 A01-A02 · MegAtec-380 A07-A09 · MegAtec-600 A25-A26
