Expansion joints in Guwahati
4 projects — 1 completed, 3 in progress
Guwahati is the most seismically demanding place we work, and every building on our record here is public: a medical college, police housing, a stadium and the state convention centre.
We design the joint schedule from your drawings, manufacture the systems in India and install them with our own trained crews — one contract and one point of responsibility, rather than a trader supplying profiles and leaving the fixing to whoever is on site.
Zone V is not a bigger version of Zone IV
Seismic zone and annual temperature range are what actually set the movement a joint has to absorb. Guwahati sits in Zone V under IS 1893 — the highest band in the code, and the only Zone V market in our record — with an annual swing of about 10 °C to 36 °C.
The code puts Assam in the highest band there is
Guwahati is Zone V under IS 1893 — the top of the scale, above Delhi. The design ground motion is roughly double Zone III and the joint is no longer a thermal component with a seismic allowance bolted on. It has to take large movement in more than one direction at once, return to position, and keep its anchors in the slab while doing it. That is an ASTM E-1399 Class III system, specified as one from the start.
Soft valley ground amplifies what arrives
The city sits on Brahmaputra valley alluvium. Soft deposits amplify ground shaking relative to rock, and adjacent blocks founded differently will not move together. Both effects land on the joint line, which is why the seismic gap here is set by the structural engineer’s separation calculation and should never be taken from a product catalogue.
Rain volume, not rain frequency, is the waterproofing case
Assam takes a very heavy monsoon over a short season. Roof, terrace and podium joints see high sustained volume rather than occasional wetting, so the membrane termination and the fall towards it decide whether the joint stays dry — the metal above it is rarely the leak.
Every one of these buildings runs on an approved-makes list
Government and institutional work is specified before it is tendered, inspected by a third party, and substituted at fit-out if the specification is loose. Getting the system named at drawing stage, with the TDS and the E-1399 class attached, is what decides whether what was designed is what gets installed.
Two thousand kilometres from the factory changes the schedule, not the product
We extrude and fabricate in Delhi. On a Guwahati job a gap found wider on site than the drawing said is a fortnight, not an afternoon — so the survey before manufacture carries more weight here than anywhere else we work, and we would rather measure twice than ship twice.

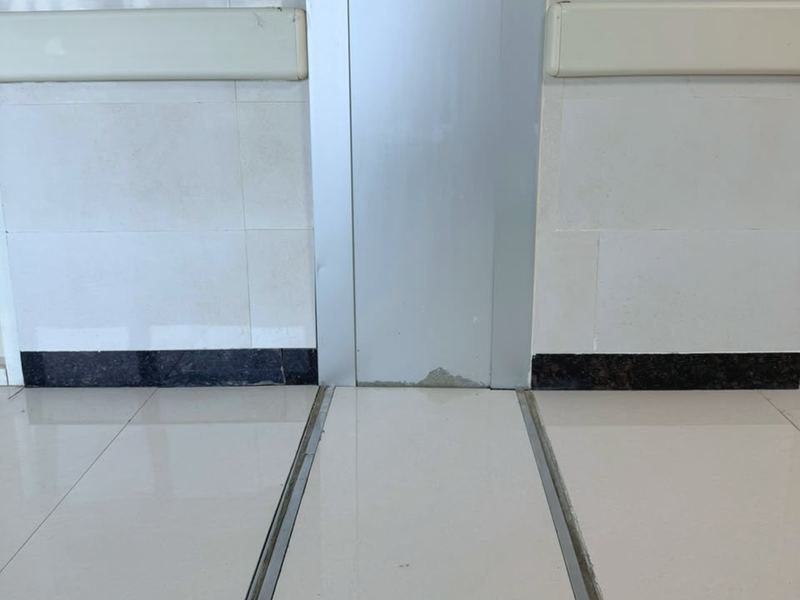

Typical systems on Guwahati work: SeismAtec 450 where the seismic separation runs wide, MegAtec 340 for trafficked floors, and MegAtec 360 for wall and ceiling joints. The right answer depends on the gap, the movement class, the traffic and the location — send drawings and we will name it per location.
Guwahati projects on record
| Project | Client & location | Sector | Status |
|---|---|---|---|
| Guwahati Medical College | Govt of Assam · Guwahati, Assam | Public Infrastructure | Completed |
| Assam Police (L&T) | Govt of Assam · Guwahati, Assam | Public Infrastructure | Ongoing |
| Guwahati Stadium | Govt of Assam · Guwahati, Assam | Public Infrastructure | Ongoing |
| State Convention Centre, Guwahati | Shree Gautam Construction · Guwahati, Assam · 2026 | Public Infrastructure | Ongoing |
Part of 76 projects across 41 cities and 20 states. Defence and security projects under non-disclosure are not listed.
Other markets
We work nationally from Delhi. These are the markets where the project record is deepest — each page lists the buildings, the clients and what local conditions do to the joint design.
Building in Guwahati?
Send GFC or concept drawings and we will return a location-by-location joint schedule, with the gap, the system and the movement class named.
Talk to our technical team
